Hot Forging Press With Automatic Feeding For Brass ValveHot Forging Press With Automatic Feeding For Brass Valve

Update: 2018/7/27 View:

Brand: IPOWER
Type: IPH120YGWL
Machining Parts: LPG Cylinda Valve, ball valve,
Machining Material: Brass,bronze,copper,iron

Introduction

Main Function and features:
The machine is mainly used for hot forging technology of brass products, it is highly automtical machine.
The horizontal type of forging press is very suitable for making half mold products(open mold).
The machine working pressure, stroke can be adjusted in the range of the parameters within the
Istp heacsii caadtvioann.tages of simple and flexible operation, low noise, stable pressure, fast movement,high
efficieny,save labor, and cost -effective machine.
The machine is widely used for producing ball valve bodies, gas valve, gate valve,stop valve, check valve,

angle valve pipe fittings and other kind of brass products.

Video Link: https://youtu.be/xMSJoo1WzTo

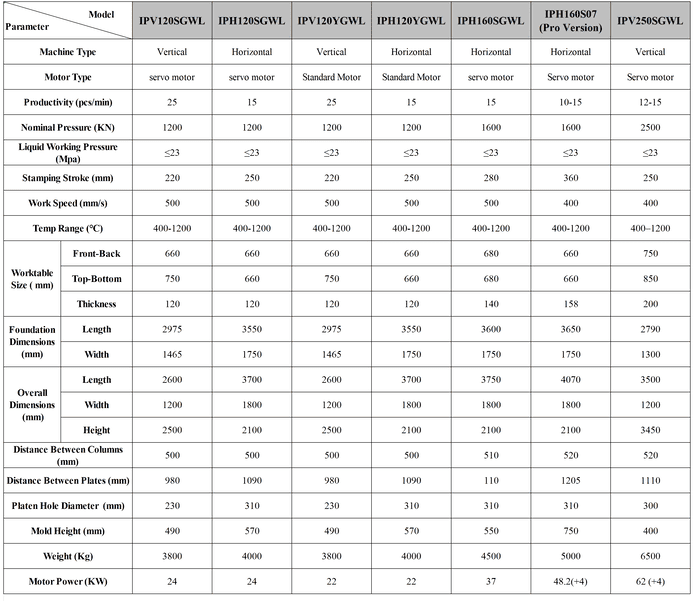

EQUIPMENT PARAMETERS

Model		IPV120SGWL	IPH120SGWL	IPH160SGWL	IPV120YGWL	IPH120YGWL
parameter		IPV120SGWL	IPH120SGWL	IPH160SGWL	IPV120YGWL	IPH120YGWL
Type		Servo vertical Water cooling	Servo horizontal Water cooling	Servo horizontal Water cooling	Ordinary vertical Water cooling	Ordinary horizontal Water cooling
Productivity (pcs/min)		25	15	15	25	15
Norminal Pressure (KN)		1200	1200	1600	1200	1200
Liquid Working Pressure (Mpa)		≦23	≦23	≦23	≦23	≦23
Stamping Stroke (mm)		220	250	280	220	250
Working Pacing (mm/s)		500	500	500	500	500
Table Size (mm)	Bofore and after	660	660	680	660	660
	Around	750	660	680	760	660
	Thickness	120	120	140	120	120
Basic Size (mm)	Length	2975	3550	3600	2975	3550
Basic Size (mm)	Width	1465	1750	1750	1465	1750
Boundary Dimension (mm)	Length	2600	3700	3750	2600	3700
	width	1200	1800	1800	1200	1800
	Highly	2500	2100	2100	2500	2100
Distance Between Columns (mm)		500	500	510	500	500
Distance between plates (mm)		980	1090	110	980	1090
Platen hole diameter (mm)		230	310	310	230	310
Mold Height (mm)		490	570	550	490	570
Weight (Kg)		3800	4000	4500	3800	4000
Motor Power (Kw)		24	24	37	22	22

FAQ

Q1:How to guarantee the Quality of hot forging press machine?

A1:We are ISO 9001-2008 certified company. we have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.

Q2:What's the Advantage of iPOWER hot forging press machine?

A2:Our advantage :

1. The technology is imported from Germany and we have experienced engineers who have been worked in this field for more than 20 years, and some new engineers who has production experiences, know-how the machine working in pratice.

2. High precision,most competitive prices, fast delivery.

3. With good company culture, our employees are responsible-oriented, friendly-oriented,and diligent-oriented. our machines are featured by strict tolerance, smooth finish and long-life performance.

Q3:what are the machining equipments?

A3:Our machining equipments include milling machines, turning machines, stamping machines, hobbing machines, automatic lathe machines, tapping machines, grinding machines, screw machines, cutting machines and so on.

Q4: What shipping ways you use?

A4:Generally speaking, we will ship them by sea. This way can save our customers a lot of freight fee.

Q5:What materials can you handle?

A5:Brass, bronze, copper,aluminum, titanium, for LPG Cylinda Valve, ball valve, plug valve, steam valve, stop valve, gas valve, etc.

Q6:Can you provide detailed proposal,photos, working viedo, and specifications of the machines?

A6: Yes, we can provide all detailed information of our machines. We can give full proposal after receiving drawing of the products.
